Professional imaging experience
A professional encoder with HEVC and MPEG-4 compression capabilities for broadcasting a single channel up to 2160p30 quality. This compressor is 1U in size, rack-mountable, and features a user-friendly management system.
Optimal bandwidth usage
The bitrate fluctuation in this encoder has practically dropped below half a percent. In other words, all the bandwidth available to this compressor is fully utilized. This advantage allows you to make full use of the available bandwidth during transmission and deliver better image quality.
Image Stability
In fast-moving scenes, if limitations are imposed, it can lead to image freezing. Therefore, stabilizing the bitrate can prevent this issue.
Improved Quality
With a fixed bandwidth, you can transmit a higher-quality image. The higher the bitrate, the better the image clarity will be.
Cost saving
Renting bandwidth is costly. Therefore, proper bandwidth usage can be beneficial in managing expenses.
HEVC
Global Standards in the Broadcasting World
MPEG-4
The use of this standard is common in many centers.
AAC , MPEG-1 L2
Professional Well-Known Audio Codecs
Profiles and Levels
In each codec, various profiles and levels are available.
Audio and Video Compressor with Cutting-Edge Codecs
Usable in headend and SNG vehicles
Professional television networks require compressors in two areas. In the data center at the HeadEnd, which is physically stationary. The other area is in vehicles or portable cases, which are mobile. This encoder is capable of being used in both scenarios.
Head-End
Usage in satellite, terrestrial, and IP data centers
FlyAway
Suitable for use in portable cases for radio transmission. Ask Explain
Use in SNG
Capable of installation in satellite and radio transmission vehicles

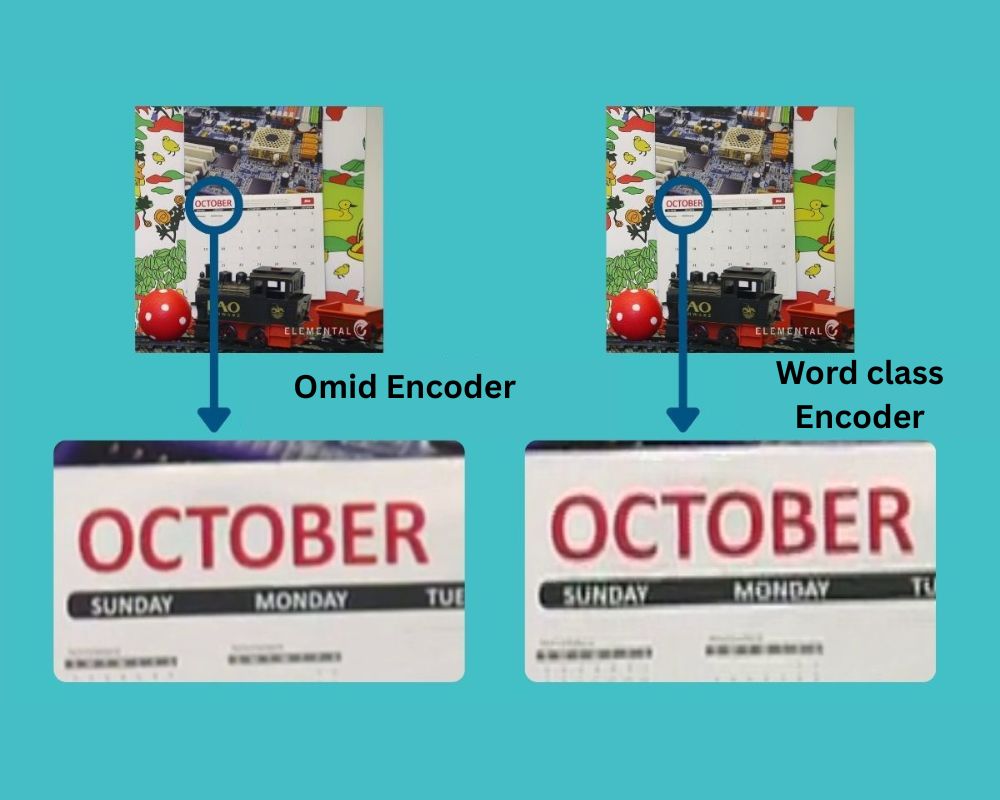

Competing with the best in image quality
The encoder device was placed at the disposal of a specialized laboratory for television networks to undergo quality testing and has been compared with some of the best global brands
Optimized for the human eye
Preserving quality in a way that is suitable for the human eye
Support for 8 and 10 bits
Support for 10-bit and 8-bit in HEVC and MPEG-4
Support for 2160p30
The encoder supports SD, HD, FHD, and 4K inputs
What is the advantage of choosing this device?
The extensive experience of collaborating with television networks has provided a clear understanding of the specific needs of the broadcast industry. Therefore, the features and services offered alongside the compressor are designed to ensure that you can feel confident in making a great choice.
Multi-Service
۱ embedded audio-video output and 3 independent audio outputs (4 services in total)
Local Support in Iran
This product is domestically manufactured and comes with a warranty and support services available within the country.
Easy to Use
In the design of the user interface, simplicity and user-friendliness have been considered to meet the needs of professionals.
Technical Specifications
| Title | Description |
|---|---|
|
Input |
۱x6G-SDI 16xEmbedded Audio (SDI) 1xHDMI 2.0a connector 8xEmbedded Audio (HDMI) |
|
Output |
۳xDVB-ASI (coax) 0 to 214 Mbps TS over IP On the RJ45 connector |
|
Number of Channels and Resolution |
Support for Multi-Service (4 Output Services) 1 embedded audio-video service 3 radio services (audio-only) 525i59.94 NTSC, 625i50 PAL 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Image Compression |
HEVC (H.265) - Main, Main 10 - Level: 6.2 AVC (H.264, MPEG-4) - Main, High, High 10 - Level: 4.2, 5, 5.1 |
|
Audio Compressor |
MPEG1 Layer II AAC-LC HE-AAC (AAC+) HE-AAC V2 |
|
Features |
UDP, RTP FEC Unicast or multicast VBR, CBR Chroma Sampling 4:2:0 8-bit, 10-bit I-only, IP, IB, IBP, IBB, IBBP, IBBB, IBBBP, IBBBB, IBBBBP H.264: HEVC: I-only, IP |
|
Management |
GbE port for management via WEB Interface Front panel keypad and display for management SNMP support |
|
Physical Specifications
|
۱U size, rack-mountable Dimensions: 429x437x43 mm Weight: 12.5 Kg |
