IPTV Headend Omid is built with a flexible, modular design to meet the diverse needs of broadcasting centers, organizations, and professional facilities. It can receive content simultaneously from multiple sources including satellite (DVB-S/S2/S2X), terrestrial (DVB-T/T2), ASI, IP streams, USB, and HDMI. Only the required modules are installed based on the project. After source selection, the internal multiplexer combines the content and distributes it through IP, RF, or ASI outputs. All features are provided as optional modules based on project needs and budget.
Omid IPTV Headend
A complete and scalable platform for receiving, managing, and distributing TV and VOD content over IP and RF infrastructures. Suitable for organizations, hotels, hospitals, and professional broadcast environments.
Interactive With Your TV
IP and RF Output
Deliver content over IP for LAN networks or via RF for coaxial systems, depending on the project’s infrastructure.
Multi-Source Input
Receive signals simultaneously from DVB-S/S2, DVB-T/T2, and IP sources to ensure flexibility in TV and VOD content delivery.
Content Distribution Personalization
Select and combine channels based on your requirements using the internal multiplexer and configure outputs for different networks.
Modular IPTV Headend Customization

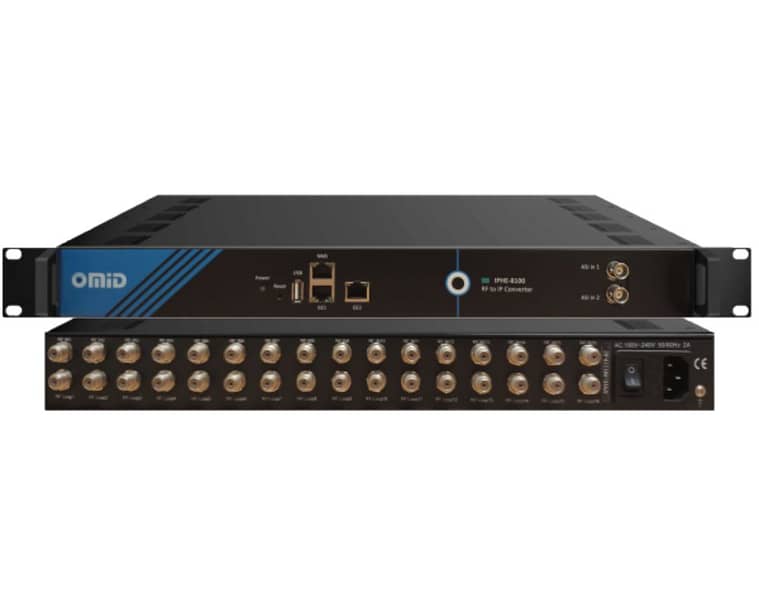

With a modular 1U design, IPTV Headend Omid fits easily into any server rack. It operates as a standalone device and supports a wide range of input and output options including IP, RF, ASI, HDMI, and USB. This flexibility makes it ideal for hotels, hospitals, industrial camps, offshore platforms, residential buildings, banks, and more.
Multiple input and output options
Modular structure with easy rack installation
Flexible Configuration
Content Input via IP and ASI
The device supports ASI and IP inputs based on project needs. ASI is widely used in professional studio environments for content transport. IP input allows the device to receive digital streams directly, offering more flexibility in managing audio and video sources.
Flexible multi-source management
Content reception via IP
ASI input support
Dedicated Content Playback via HDMI and USB
Using HDMI and USB inputs, the device can broadcast dedicated content without studio equipment. Users can send video files or live HDMI sources as a standalone channel to all screens.
Simple dedicated channel distribution
USB content playback
HDMI input
Optimized Content Management
With a built-in multiplexer (MUX), channels can be selected, grouped, and adjusted specifically for IPTV and RFTV distribution. This ensures clean organization and easy access for users.
Streamlined content organization
Dedicated IPTV and RFTV management
Internal MUX control
IPTV Headend IPTV and RFTV Output
After processing, the device outputs through IP or RF. IP output works over LAN or fiber, while RF output (DVB-T) works over coaxial cables. This makes the device suitable for both modern and legacy infrastructures.
Supports both modern and traditional environments
RF output
IP output
Professional ASI Output
The ASI interface is essential for professional video transport. The device supports ASI output for sending compressed streams such as MPEG-4 and HEVC with stability and high quality. It is especially useful for broadcast networks and OTT platforms.
Stable, high quality video transport
Professional grade standard
ASI output
Frequently asked Questions
It supports DVB-S/S2/S2X, DVB-T/T2, IP, ASI, HDMI, and USB.
Yes. Its modular design lets you select the required inputs and outputs based on project needs.
Between 4 and 24 tuners, depending on configuration.
Yes, thanks to simultaneous IP and RF output.
Content can be delivered via IP (LAN or fiber) and via RF for coaxial networks.
